Product Available



Total thickness	3mm, 4mm, 6mm
Aluminum thickness	0.4mm, 0.5mm
Width	1220mm,1250mm (standard width) 1000mm,1500mm,1550mm (non standard width)
Length	up to 6000mm
Dimensional Tolerances
Thickness	±0.02 mm
Width	-0/+2mm
Length	1000 - 4000 mm	-0/+4mm
Length	4001 - 6000 mm	-0/+6mm
Grade	A2 grade & B1 grade





Note:
1) PVDF Paint or Polyester paint.
2) Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
     A) 20-year guarantee for PVDF aluminum composite panels
     B) 10-year guarantee for polyester aluminum composite panels
11) Package: Strong wooden case

Aluontop A2 FR is an innovative ACP solution composed of two rigid top-grade aluminum sheets and a certified non-combustible inorganic core.Processing under continuous high temperature and pressure, Aluontop A2
Fire resistance certified under BS-476 part 6/7, ASTM-E84 and EN13501-1 standards FR therefore is a solution for exterior cladding projects that require high fire resistance and excellent mechanical strengths.

Extraordinary strength-to-weight ratio,rigidity,flatness and formability
Outstanding weatherproof and easy to clean
Wide range of surface colors and textures to satisfy creative planning and designs
Environmentally friendly that can be recycled
15 years lifespan warranty





Specification:
Surface Face 0.50mm –thick top grade aluminum sheet
Core 3mm non-combustible m inorganic core certified under BS-476 part 6/7,
ASTM-E84 and EN13501-1 standards
Backside face: 0.50mm-thick top grade sheet
Dimesion: T * W* L 4*1220*2440MM
Customization Width 1250/1500mm
                           Length 3200/4050mm (Upon request)

Standard Color: 45 kinds
Surface Enhancement: Standard Solid, Metallic Color, Embossed, Brushed, FEVE, DreamX

Custom Color:
Custom Color matching is available under individual project consulation

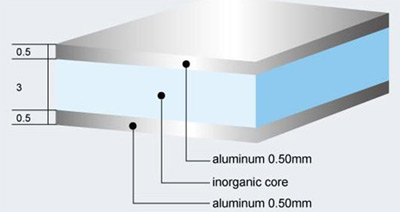

Structure:

Feature:
Class : A2  according to the standard GB8624-2006
Class A2 and class B Fire-resistance ACP contrast test (30 seconds after ignition out):

         class A2                                                               class B
            no influence no flame                                       flame has generated





Comparison of same rigidity and weight:

Aluontop A2 FR		Solid Aluminum		Comparison of weight(Aluminum)
Panel thickness	Unit weight	Thickness (same rigidity)	Unit weight
3mm	6.20kg/m2	2.7mm	7.30kg/m2	85%
4mm	8.00kg/m2	3.3mm	8.90kg/m2	90%
6mm	11.20kg/m2	4.5mm	12.20kg/m2	91%
